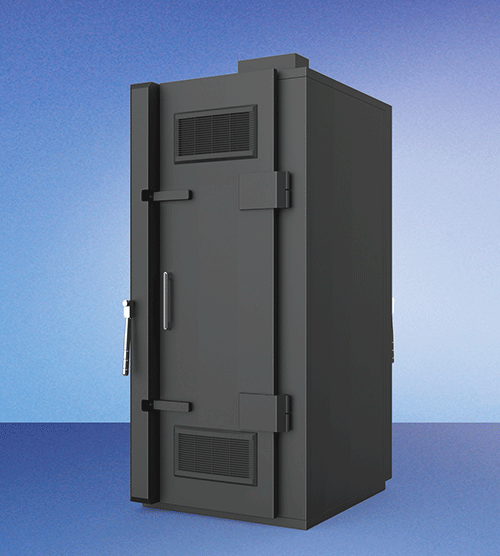

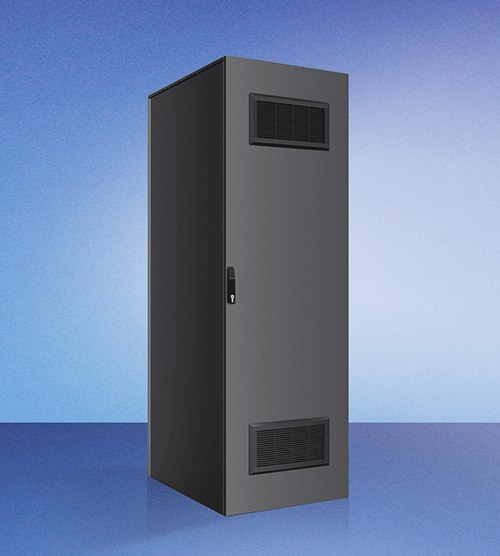

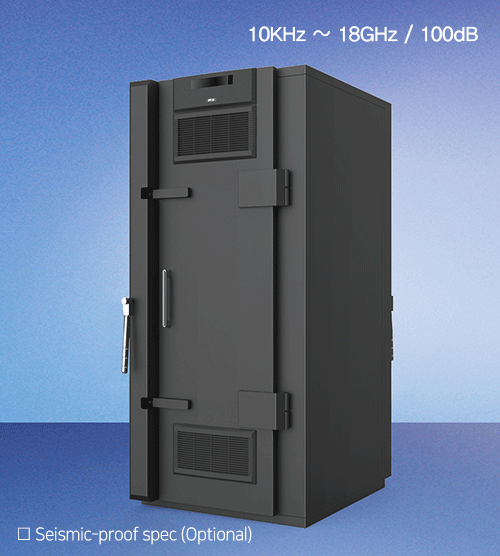

P905EP-EMP/EMC100dB Rack shields electromagnetic waves that may interfere with the normal operation of the system. In addition, the cooling system automatically operates in accordance with the set internal temperature to provide an optimal environment for system operation. (Shielding performance: 10KHz to 18GHz/ 100dB or higher).

Functional Features

1. Its design compiles with the International Standards (i.e. IEA, EIA and DIN) and thus ensures compatibility with all equipment and devices.

2. The shielding specification of MIL-STD-188-125-1/2 is applied to the product, and thus the product shields the access of electromagnetic waves such as EMP/EMC that may interfere with the normal operation of the system.

3. Front and rear doors are equipped with a finger strip double shielding structure for electromagnetic shielding, so that the shielding performance does not degrade even with repeated opening and closing of the door, and the use of lever-type gear makes it more convenient to use and manage the door.

4. Mount Frame is a cage nut type, and U-unit number is marked on the product for convenient use.

5. AC / DC – 30A can be applied to EMP/EMC Power Filter, with a leakage current of up to 10mA or less, which enables to operate without a separate insulation transformer.

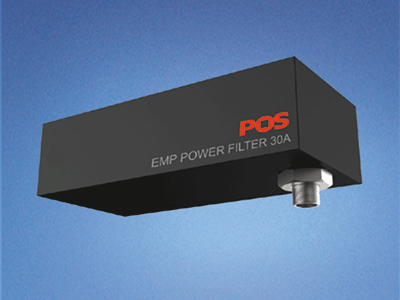

6. EMP Power Filter is a PCI Test certified product; the test is to verify protection capacity against the inflow of HEMP current diverted from power lines and communication lines. (PCI: Pulsed Current Injection/ Spec.: MIL-STD-188-125-1/2, Max. current – 5,000A)

7. Cooling System is equipped with intake 4Fan on the front door and exhaust 4Fan on the rear door, and operates automatically at the set temperature to provide the most optimal environment for system operation.
